Image Sensor: CMOS 640 × 480 pixels
Scan Accuracy: ≥4mil @ Code39
Print Contrast: ≥20%
Frame Rate: 30 fps
Scan Distance:

• 20–200 mm @ EAN 13mil PCS=100%
• 5–170 mm @ QR 20mil PCS=100%

Field of View:

• Horizontal: 32°
• Vertical: 24°

Scan Angle:

• Left/Right: ±55°
• Front/Rear: ±55°
• Rotation: 360°

Light Source:

• Aiming: 625nm Red LED
• Illumination: 4000K LED

Scan Modes:

• Manual (Handheld)
• Automatic (Hands-free)

Decoding Capability:
1D Codes: EAN-13, EAN-8, UPC-A, UPC-E0/E1, Code 128, Code 39, Code 93, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, MSI-Plessey, Standard 2 of 5, Plessey, China Post, Code 16K, GS1 Databar (RSS)
2D Codes: QR Code, PDF417, Data Matrix (ECC200), Aztec, HanXin Code, Maxicode, Micro QR, Micro PDF417

Interfaces:

• USB Keyboard
• USB Virtual COM
• RS-232

Transmission: Wired
Cable: 1.8M (straight)

Power Supply:

• Input Voltage: 5VDC ±5%
• Working Current: 150mA (typical)

OS Compatibility:

• Windows
• iOS / Android

Physical Dimensions: 179 × 68 × 94 mm
Weight: 203g (with cable)
Material: ABS + PC, TPU

Environmental Conditions:

• Operating Temp: -20°C to 60°C
• Storage Temp: -40°C to 70°C
• Humidity: 5% to 95% RH (non-condensing)
• Ambient Light: 0–100,000 Lux
• Drop Resistance: 2 meters
• ESD Protection: ±8kV (Direct Discharge)

Features & Extras:

• LED Indicator + Buzzer

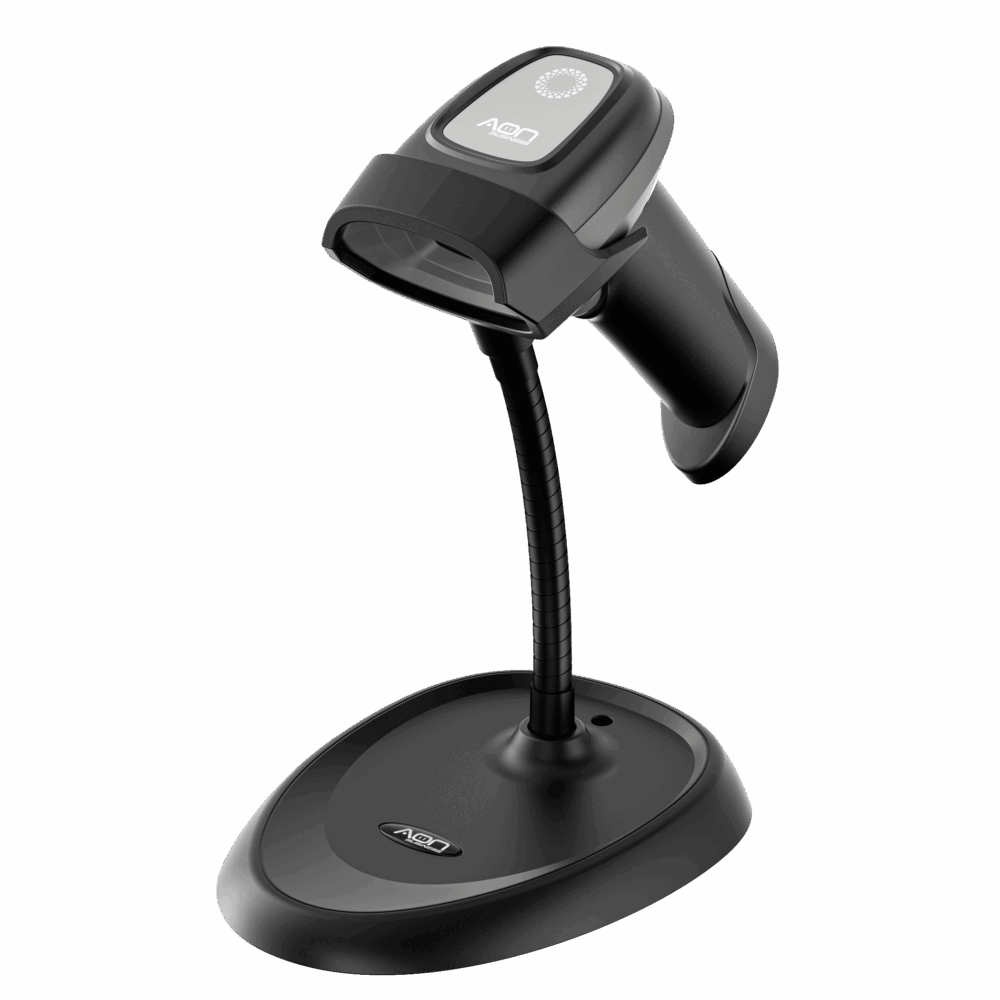

• Optional Scanner Bracket (for hands-free scanning)
• Modular and ergonomic design
• High-temp resistant cable
• Supports paper, WeChat, and Alipay barcodes

Certifications:

• CE (EN55032, EN55035)
• ROHS
• EN62368-1
• FCC Part 15 Class B
