Printing Method

Printing method: Thermal line
Resolution: 8 dots/mm (203 dpi), 576 dots/line
Print speed: 250 mm/s
Emulation: ESC/POS

Paper

Paper width: 57.5 ± 0.5 mm / 79.5 ± 0.5 mm / 82.5 ± 0.5 mm
Paper type: Thermal paper
Effective printing width: 72 mm
Paper thickness: 0.06 – 0.1 mm
Paper supply method: Manual

Fonts Symbology

Character set: ASCII, GB18030 (Chinese), BIG5 (24×24)
Print font: ASCII: 9×17, 12×24, 8×16
1D Barcode: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128
2D Barcode: PDF417, QR Code, DATA MATRIX

Interface

Interface: RS232 + USB

Power

Power supply: DC 24V ±10%, 2A

Cutter

Auto cutter type: Full cut / Partial cut
Auto cutter life: 1,500,000 cuts

Reliability

Thermal head life (THP): 100 KM

Environmental Requirements

Operating temperature / humidity: 0 ~ 50°C / 10 ~ 80%
Storage temperature / humidity: –20 ~ 60°C / 10 ~ 90%

Advantages

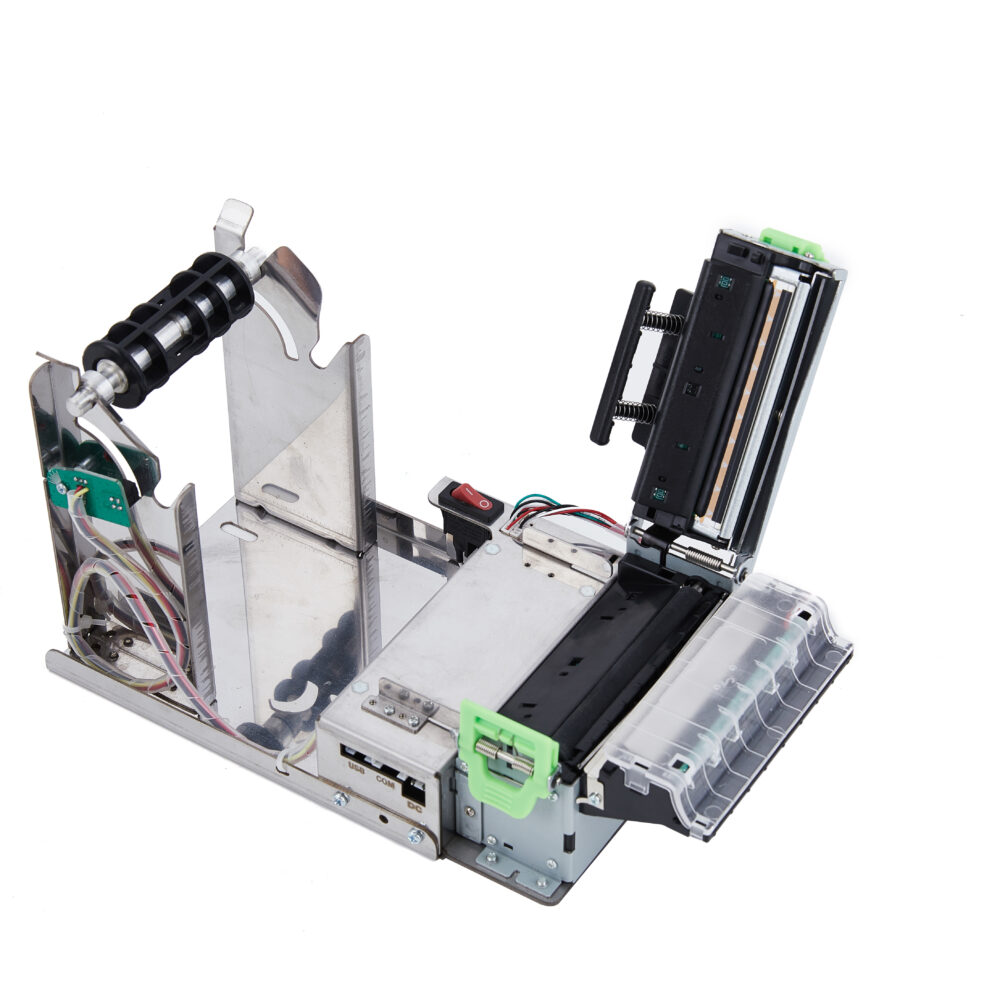

• Side-opening method
• Paper feed at 180°, avoiding paper jams
• Anti-pulling, anti-blocking paper
• With buffer component

Application Scenarios

Fire control / Locker cabinet / Retail / Storage / SST / ATM
